Description

• Evaluation of acquisition and reconstruction methods for cardiac and lung ECT studies
• Evaluation of non-uniform attenuation and scatter compensation methods
• Research

• Includes spine and fillable lung inserts
• Lung inserts can be filled with Styrofoam® beads and water to simulate lung tissue density
• Optional Cardiac Insert (Model ECT/CAR/I) may be purchased separately
• Simulates anatomical structures and radioactivity distributions in upper torso of human
• Optional body contour rings may be purchased separately. When used with the body contour rings, the upper torso of a small (~ 30 x 22 cm) patient is simulated

Specifications

• All clear material: PMMA
• Cylinder inside diameter: 21.6 cm
• Cylinder inside diameter along major axis: 30.5 cm
• Cylinder inside diameter along minor axis: 22.1 cm
• Cylinder inside height: 18.6 cm
• Cylinder wall thickness: 6.4 mm

Volumes:
• Empty cylinder: ~ 9.5 liters
• Left lung (w/o Styrofoam® beads): ~ 0.9 liter
• Right lung (w/o Styrofoam® beads): ~ 1.1 liters
• Left lung (w/ Styrofoam® beads): ~ 0.36 liter
• Right lung (w/ Styrofoam® beads): ~ 0.44 liter
• Volume of cylinder with Lungs: ~ 7.4 liters

Models

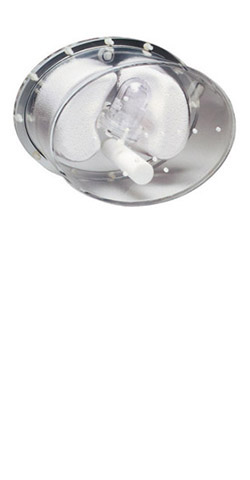

• ECT/LUNG/P - Elliptical Lung-Spine Body Phantom
