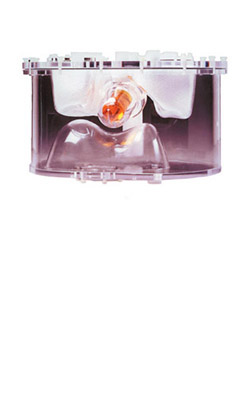

Anthropomorphic Torso Phantom
Model ECT/TOR/P


  • Evaluation of cardiac ECT data acquisition and reconstruction methods
  • Evaluation of non-uniform attenuation and scatter compensation methods
  • Research
Anthropomorphic Phantom

Main Features:

  • Includes large, body-shaped cylinder lung, liver and spine inserts
  • Lung inserts can be filled with Styrofoam® beads and water to simulate lung tissue density
  • Optional Cardiac Insert™ (Model ECT/CAR/I) may be purchased separately
  • Simulates upper torso of average to large male/female patients (38 x 26 cm)/li>
  • Simulates anatomical structures and radioactivity distributions
  • Optional Fillable Spine Insert available

Specifications

    Dimensions:
  • Lateral outside dimension: 38 cm
  • Lateral inside dimension: 36 cm
  • Anterior-posterior outside dimension: 26 cm
  • Anterior-posterior inside dimension: 24 cm
  • Wall thickness: 9.5 mm
    Volumes:
  • Left lung (w/o Styrofoam® beads): ~ 0.9 liter
  • Right lung (w/o Styrofoam® beads): ~ 1.1 liter
  • Left lung (w/ Styrofoam® beads): ~ 0.36 liter
  • Right lung (w/ Styrofoam® beads): ~ 0.44 liter
  • Liver: ~ 1.2 liters
  • Background: ~ 10.3 liters
  • Cylinder with lung-spine insert: ~ 7.4 liter

Model

  • ECT/TOR/P - Anthropomorphic Torso Phantom
