Table top barriers

Home \ Nuclear Medicine \ Hot Lab \ Radiation Barriers \ Table top barriers

Description

Table top barriers
    Table top barrier
  • The barrier is made of 5, 10, 20, 30 or 50 mm lead covered in steel. Dimensions are 360*430 mm (W*D), the height is depending on the model. The lead glass window is mounted at an angle of 45˚ for an optimal view on the work area. The lead glass window has the same lead equivalent as the lead shielding with a density of 5,2 g/cm3. Lead glass dimensions are 350*280 mm (W*H). The table top barrier can easily be placed on a work table. The smooth oyster white (RAL 1013) finish ensures easy cleaning.
    Acrylic glass table top barrier (beta)
  • For beta radiation applications the table top barrier is completely made of acrylic glass. Dimensions are 360*430*460 mm (W*D*H).

Specifications

  • Dimensions: 360*430 mm (W*D)
  • Lead glass: 350 x 280 mm
  • Front: 360 x 250 mm
  • Height: ± 480 mm
  • Color: oyster white
  • Ideal for working on non shielded tabletops
  • Available in multiple lead thicknesses
  • Optimal view at the working surface through the lead glass window
    Table top barrier
  • Dimensions: 360*430 mm (W*D)

    • Model VG-TTB-5:
    5 mm lead shielding, 140 Kev, height is 458 mm, weight ± 32 kg

    Model VG-TTB-10:
    10 mm lead shielding, 140 KeV, height is 475 mm, weight ± 56 kg

    Model VG-TTB-20:
    20 mm lead shielding , 364 KeV, height is 490 mm, weight ± 92 kg

    Model VG-TTB-30:
    30 mm lead shielding, 364 KeV, height is 502 mm, weight ± 132 kg

    Model VG-TTB-50:
    50 mm lead shielding, 511 KeV, height is 520 mm, weight ± 188 kg
    Lead glass dimensions: 350*250 mm (W*H)
    Barrier dimensions: 360*400*520 mm (W*D*H)

    Acrylic glass table top barrier (beta)
  • Dimensions: 360*430*460 mm (W*D*H)

    • Model VG-TTB-PG-5:
    5 mm acrylic glass

    Model VG-TTB-PG-10:
    10 mm acrylic glass

Photos

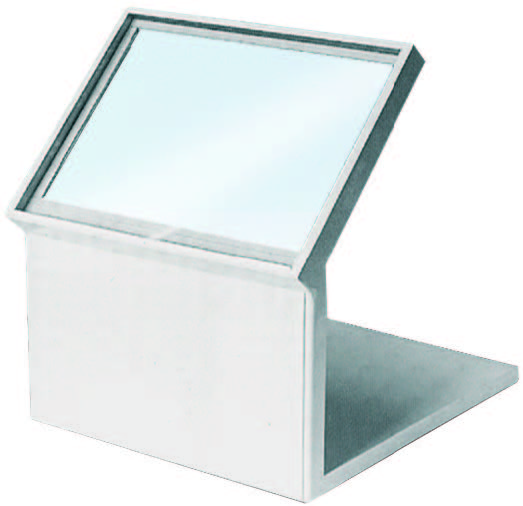

  • Ecran de Protection blindé pour Paillasse

Models

    Table top barrier
  • VG-TTB(RD-50)-5 Table top barriers 5 mm lead shielding (± 32 kg)
  • VG-TTB(RD-50)-10 Table top barriers 10 mm lead shielding (± 56 kg)
  • VG-TTB(S.2D)-20 Table top barriers 20 mm lead shielding (± 92 kg)
  • VG-TTB(S.2D)-30 Table top barriers 30 mm lead shielding (± 132 kg)
  • VG-TTB(S.2D)-50 Table top barriers 50 mm lead shielding (± 226kg)
    Acrylic glass table top barrier (beta)
  • Model VG-TTB-PG-5
  • Model VG-TTB-PG-10
